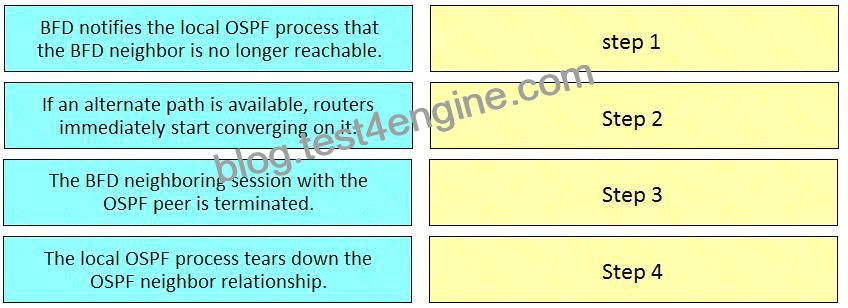

Q151. A failure occurs on the network between two BFD and OSPF neighbors. Drag and drop the protocol actions from the left into the correct order on the right.

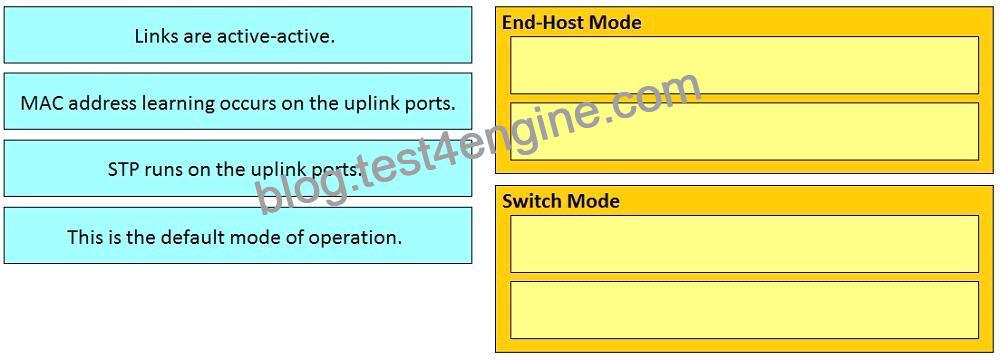

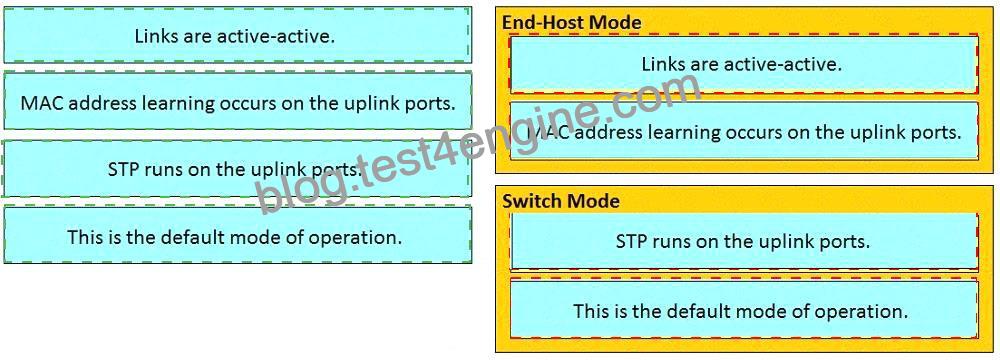

Q152. Drag and drop the feature descriptions from the left onto the correct UCS Fabric Interconnect modes on the right.

Q153. A company is planning to improve the segmentation of its data center network to isolate traffic of different clients across various parts of the facility. The solution must be highly scalable and provide flexible traffic isolation for a growing number of clients. Which action must be taken to best meet the requirements?

Q154. Which element is the main functional component of the architecture that separates the internal fabric and the external network that connects sites when VXLAN EVPN is deployed multisite?

Q155. A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?

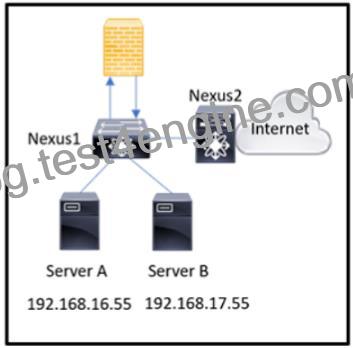

Q156. Refer to the exhibit.

The Cisco Nexus Series Switch with hostname Nexus! is the default gateway for server A and server B Both servers must have reachability to the internet; however, server A internet traffic must pass through the firewall for deep packet inspection.
Also, the firewall must inspect any communication between server A and server B.
Which solution must be applied to separate the data plane path for server A and server B?

Q157. A networking team must implement a new management solution for the network devices at their organization.
The solution must meet these requirements
* It must enable seamless monitoring, configuration, and troubleshooting while ensuring security and reliability.
* It must allow access to devices even if the production network is down.
* It must be easy to use and manage.
The company’s budget is limited. Which implementation must the team perform to meet the requirements?

Q158. Which two paths are provided by deploying an OOB management network in a data center that uses Cisco Nexus switches? (Choose two.)

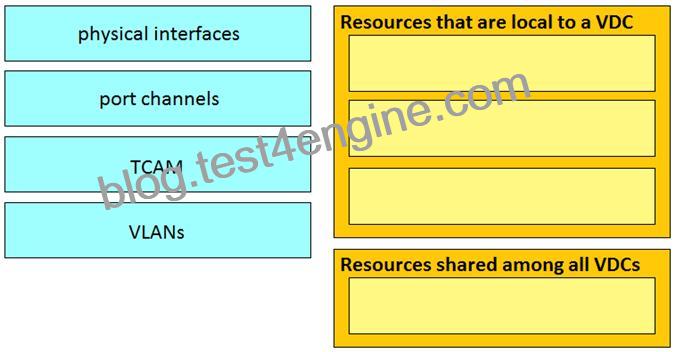

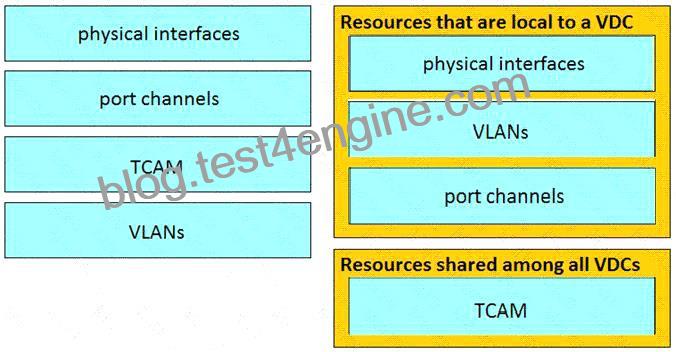

Q159. Drag and drop the Cisco Nexus 7000 Series Switch resources from the left onto the correct groups on the right.

Q160. Which authentication software natively runs within the CLI of Cisco NX-OS devices?

Q161. Refer to the exhibit. A company plans to implement high availability between the iSCSI host and the Fibre Channel target. Which solution must the company implement to recover from a failure of a host NIC, MDS IP storage port, or Fibre Channel target port?

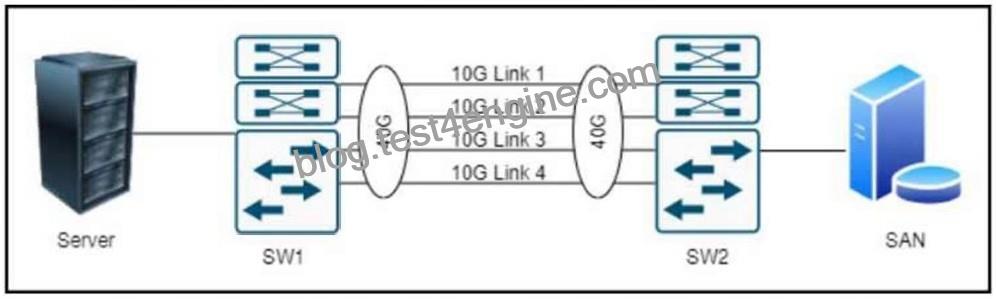

Q162. Refer to the exhibit. A 4x10G Fibre Channel has been configured between SW1 and SW2 to carry backup traffic sourced to and from the SAN. An engineer noticed that 10G Link 1 is being used more heavily than the other links within the port channel. Which action must the engineer take on the two switches to ensure that the traffic uses all available links between SW1 and SW2?

Q163. Drag and drop the components from the left onto the descriptions on the right that indicate what occurs to Fibre Channel fabric when that component fails.

Q164. An engineer is expanding an existing ISCSI environment and must choose an addressing scheme.
When checking one of the devices, the engineer discovers this target device naming used {prefix}. 2019-01.com.acme.123:00. ftd0cb21.bcb389458389
Which addressing scheme was used in the environment?

Q165. Which type of encoding is used on 8-Gbps links as compared to 10-Gbps links?

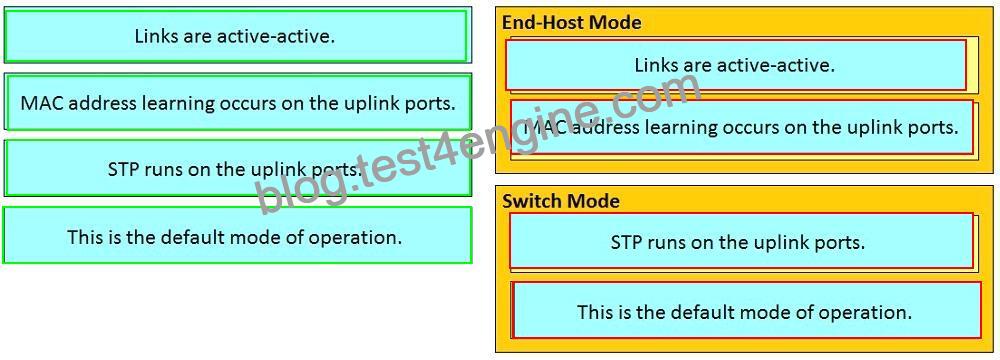

Q166. Drag and drop the feature descriptions from the left onto the correct UCS Fabric Interconnect modes on the right.

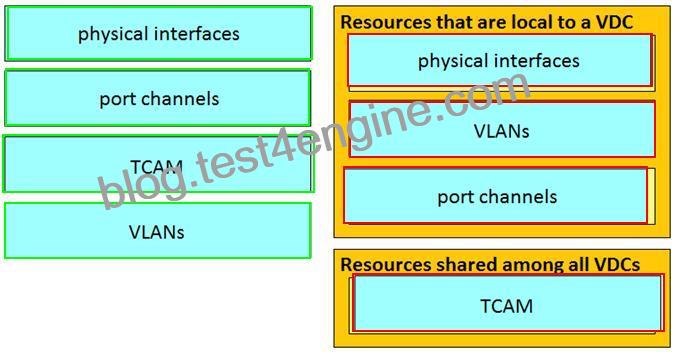

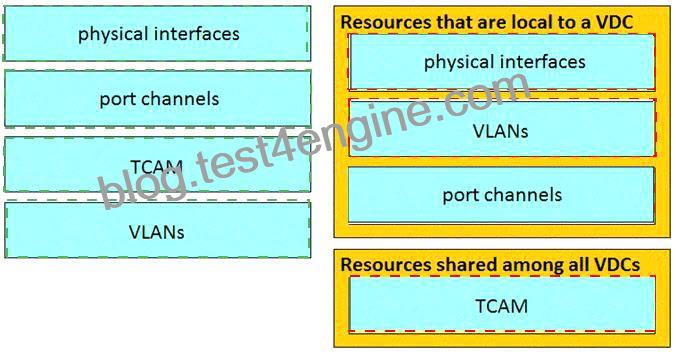

Q167. Drag and drop the Cisco Nexus 7000 Series Switch resources from the left onto the correct groups on the right.

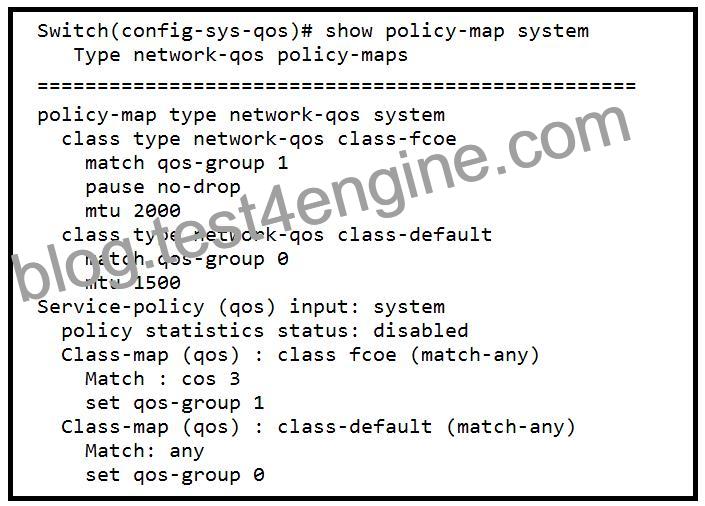

Q168. Refer to the exhibit.

The FCoE packets fail to be forwarded through the switch. What is the minimum MTU QoS requirement for the FCoE to work?

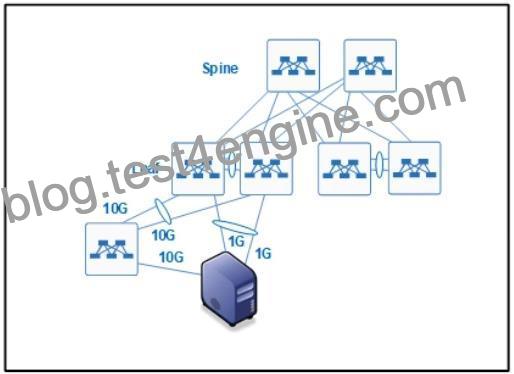

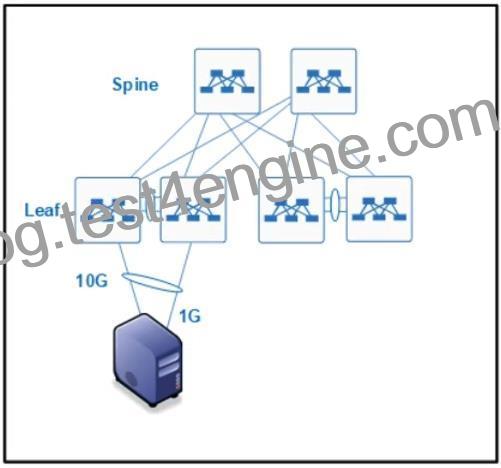

Q169. A network engineer is connecting a backup server to the given network. The server has three available physical Ethernet interfaces – dual 1Gbps interfaces, plus a single 10Gbps interface – and all devices support virtual port channels. The engineer must minimize backup time from hosts on the network, with a mandate for no single point of failure connectivity within the data center and the interfaces either active or passive. Which deployment model must the engineer use?

Q170. A Cisco engineer is developing a custom application that can run natively in Cisco NX-OS on Nexus 9000 and Nexus 3000 platforms For the NX-SDK application to run the engineer enables the NX-SDK feature on the device Then the NX-SDK is imported into the application via an import nx_sdk_py statement. The engineer creates custom CLI commands and defines custom CLI command syntax within the sdkThread function When CLI commands originate from an NX-SDK application what class is this?

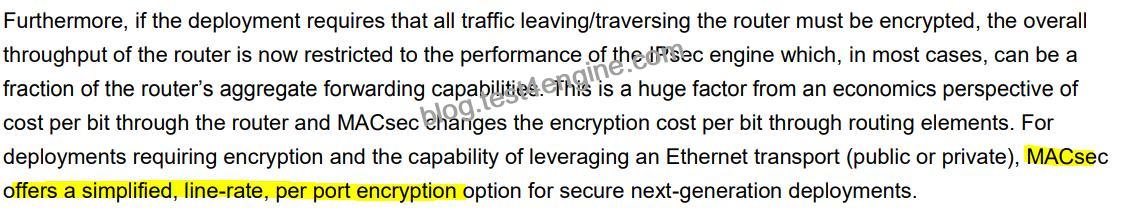

Q171. An engineer must interconnect two geographically separated data centers. The service provide offers a Layer 2 metro Ethernet link. The strict security policy requires that the information that is shared between two sites must be sent encrypted. The application deployed between sites requires a line-rate throughput regardless of the packet size and speed. Which solution meets these requirements?

Q172. Which pools are used when a vNIC template is created in Cisco UCS Manager?

Q173. An engineer must implement an iSCSI storage connectivity in the existing Cisco UCS environment. The environment is based on Cisco UCS С-Series rack server, Cisco Nexus 1000V Series Switches, and VMware ESXi hosts. The implementation must meet these requirements:
Provide multipathing and high availability in the event of a critical path failure.
Be cost-effective and not require the purchase of new equipment.
Which two components must be selected to meet these requirements? (Choose two.)

Q174. A customer deploys 32 virtualization hosts in a Cisco UCS domain. All hosts run in the same cluster and have Identical hardware specifications. The operating system requires that all firmware is consistent across the hosts (or driver support. The customer must provision additional interfaces later for expandability. Which feature of Cisco UCS Manager meets these requirements?
