To gracefully take a device out of service in Juniper Apstra (such as for an OS upgrade), you must go to the Active tab, select the target device, and set its Deploy Mode to Drain. This action ensures traffic is safely rerouted and gracefully removed from the device before maintenance begins.

The attribute that enables Juniper Apstra to scale and manage thousands of devices with a single server instance is that Apstra is a distributed state system. This means that Apstra uses a graph database to store the network topology and configuration data in a distributed and replicated manner across multiple server nodes. This allows Apstra to handle large-scale networks with high performance, reliability, and availability. Apstra also uses a stateful orchestration engine that ensures the network state is always consistent with the intent of the blueprint, which is the logical representation of the network design and behavior. Apstra can automatically detect and resolve any discrepancies between the desired and actual network state, as well as handle any changes or failures in the network. The other options are incorrect because:
A . Apstra is installed as a cloud resource is wrong because Apstra can be installed either as a cloud resource or as an on-premises resource. Apstra is available as a virtual machine image that can be deployed on various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. Apstra can also be deployed on public cloud platforms, such as Amazon Web Services (AWS) or Microsoft Azure. However, the installation method does not affect the scalability of Apstra, which is determined by the distributed state system architecture.
B . Apstra is based on NGINX is wrong because Apstra is not based on NGINX, but on Python and Django. NGINX is a web server and reverse proxy that Apstra uses to serve the web user interface and the REST API. However, NGINX is not the core component of Apstra, and it does not affect the scalability of Apstra, which is determined by the distributed state system architecture.
C . Apstra is available as an OVA is wrong because Apstra is available as an OVF, not an OVA. An OVF (Open Virtualization Format) is a standard format for packaging and distributing virtual machine images. An OVA (Open Virtual Appliance) is a single file that contains the OVF and the virtual disk images. Apstra provides an OVF file that can be imported into various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. However, the availability of Apstra as an OVF does not affect the scalability of Apstra, which is determined by the distributed state system architecture. Reference:
JUNIPER APSTRA ARCHITECTURE
Apstra Server Requirements/Reference
Juniper Networks Apstra 4.0 enhances the experience of users and operators

Fabric traffic enters and exits the border devices: In a three-stage Clos fabric, border leaf devices serve as the gateway between the internal fabric and external networks, such as the internet or WAN.
Servers are connected to leaf devices: Leaf switches are responsible for connecting endpoints like servers, storage systems, or other access layer devices.

A Logical Device in Juniper Apstra defines an abstract representation of a device’s ports, including roles and speeds, independent of any specific hardware. An Interface Map then binds this abstract Logical Device definition to the actual physical interfaces of a real hardware platform, allowing the same logical design to be deployed on different physical device models.

In Apstra 5.1, the top-level blueprint banner uses tab indicators (colored badges) to summarize blueprint status across areas such as Staged, Uncommitted, Active, and Analytics. The presence of an Uncommitted indicator signifies that there are staged modifications that have not yet been committed and therefore are not part of the active, deployed intent. That directly corresponds to the statement that changes exist which are not active on the fabric.
At the same time, the banner shows an Active indicator in an alarm state, which reflects that the running fabric has issues requiring attention-commonly surfaced as anomalies (for example, configuration deviation, interface/link faults, protocol/session issues, or service-impacting conditions). In Apstra’s operational model, these issues appear as anomalies that operators should investigate and remediate to restore compliance and health. Therefore, the statement that there are anomalies that must be addressed is also correct.
The remaining options are not implied by this banner alone. Device profile assignment and resource assignment are build-time tasks, but their absence is not what the Uncommitted/Active alert indicators are specifically communicating here. The banner is highlighting uncommitted intent changes and active anomalies that affect the deployed blueprint state and assurance posture.
Verified Juniper sources (URLs):
https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/uncommitted.html
https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/anomalies-service-active.html
https://cloudlabs.apstra.com/labguide/Cloudlabs/6.0.0/test-drive-guide/lab1-junos-5_blueprints_.html

In Juniper Apstra 5.1, Root Cause Identification (RCI) is implemented with a currently supported model focused on connectivity. Practically, this means RCI is designed to take telemetry and state learned from the fabric (for example, interface operational status, LLDP neighbor information, and routing session status) and correlate those signals to determine the most likely underlying cause of a connectivity-impacting event. Within an EVPN-VXLAN IP fabric, many operational symptoms can appear similar at the service layer (endpoints cannot reach each other, routes disappear, overlays degrade), but RCI narrows the problem by correlating evidence across the underlay and control plane.
The “connectivity” RCI model targets common failure scenarios that directly break device-to-device reachability, such as a broken link, a miscabled link (wrong LLDP neighbors), or an operator-disabled interface. These conditions often cascade into higher-level symptoms, including BGP sessions dropping over affected links. With Junos v24.4-based leaf-spine fabrics, maintaining stable underlay connectivity is foundational for EVPN signaling and VXLAN forwarding; therefore, Apstra’s connectivity-focused RCI helps operators rapidly isolate whether the primary fault lies in physical adjacency, cabling/neighbor correctness, or administrative shutdown-reducing mean time to repair by pointing to the most probable root cause rather than only listing alarms.

Probes are the basic unit of abstraction in Intent-Based Analytics (IBA). They are used to collect, process, and analyze data from the network and raise anomalies based on specified conditions.
Probes are composed of processors and stages that form a directed acyclic graph (DAG) of data flow.

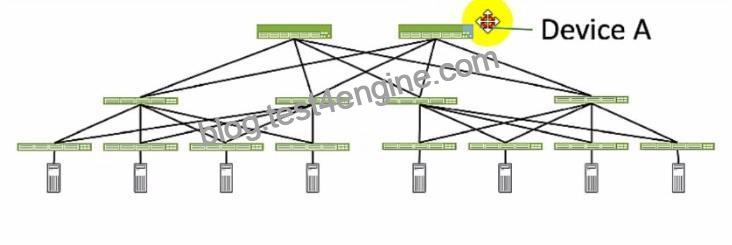

Device A serves as a spine in an IP fabric. An IP fabric is a network architecture that uses a spine-leaf topology to provide high performance, scalability, and reliability for data center networks. A spine- leaf topology consists of two layers of devices: spine devices and leaf devices.
Spine devices are the core devices that interconnect all the leaf devices using equal-cost multipath (ECMP) routing. Leaf devices are the edge devices that connect to the servers, storage, or other network devices. In the exhibit, Device A is connected to four leaf devices using multiple links, which indicates that it is a spine device.

In Juniper Apstra, a widget is a graphical element that displays data from an intent-based analytics (IBA) probe. A widget can be used to monitor different aspects of the network and raise alerts to any anomalies. A widget can be viewed by itself or added to an analytics dashboard. A dashboard is a collection of widgets that can be customized and organized according to the user’s preference. The main dashboard in Juniper Apstra is the blueprint dashboard, which is the default view that shows the network information and configuration for the active blueprint. A blueprint is a logical representation of the network design and intent. The blueprint dashboard can display the system-generated dashboards, the user-generated dashboards, and the individual widgets that are relevant to the network.
To make a widget appear on the main dashboard in Juniper Apstra, the user needs to set the Default toggle switch to On for the desired widget. This will add the widget to the blueprint dashboard, where it can be viewed along with other network information. The user can also remove the widget from the blueprint dashboard by setting the Default toggle switch to Off for the widget.

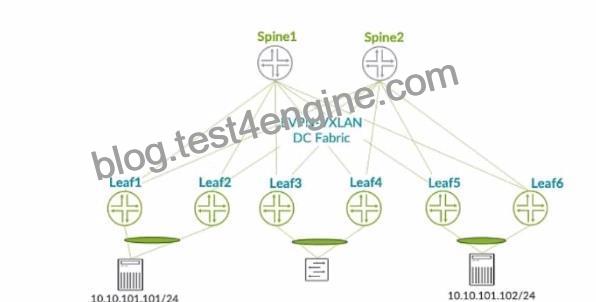

In the EVPN-VXLAN data center fabric bridged overlay architecture shown in the exhibit, the servers are connected to Leaf1 and Leaf6 using the same virtual network identifier (VNI). This means that the servers belong to the same Layer 2 domain and can communicate with each other using VXLAN tunnels across the fabric. The underlay network provides the IP connectivity between the leaf and spine devices, and it uses EBGP as the routing protocol. Therefore, the following two statements are correct in this scenario:
Loopback IPv4 addresses must be advertised into the EBGP underlay from leaf and spine devices. This is because the loopback addresses are used as the source and destination IP addresses for the VXLAN tunnels, and they must be reachable by all the devices in the fabric.
The loopback addresses are also used as the router IDs and the BGP peer addresses for the EBGP sessions.
The underlay EBGP peering’s must be established between leaf and spine devices. This is because the EBGP sessions are used to exchange the underlay routing information and the EVPN routes for the overlay network. The EBGP sessions are established using the loopback addresses of the devices, and they follow a spine-and-leaf topology, where each leaf device peers with all the spine devices, and each spine device peers with all the leaf devices.

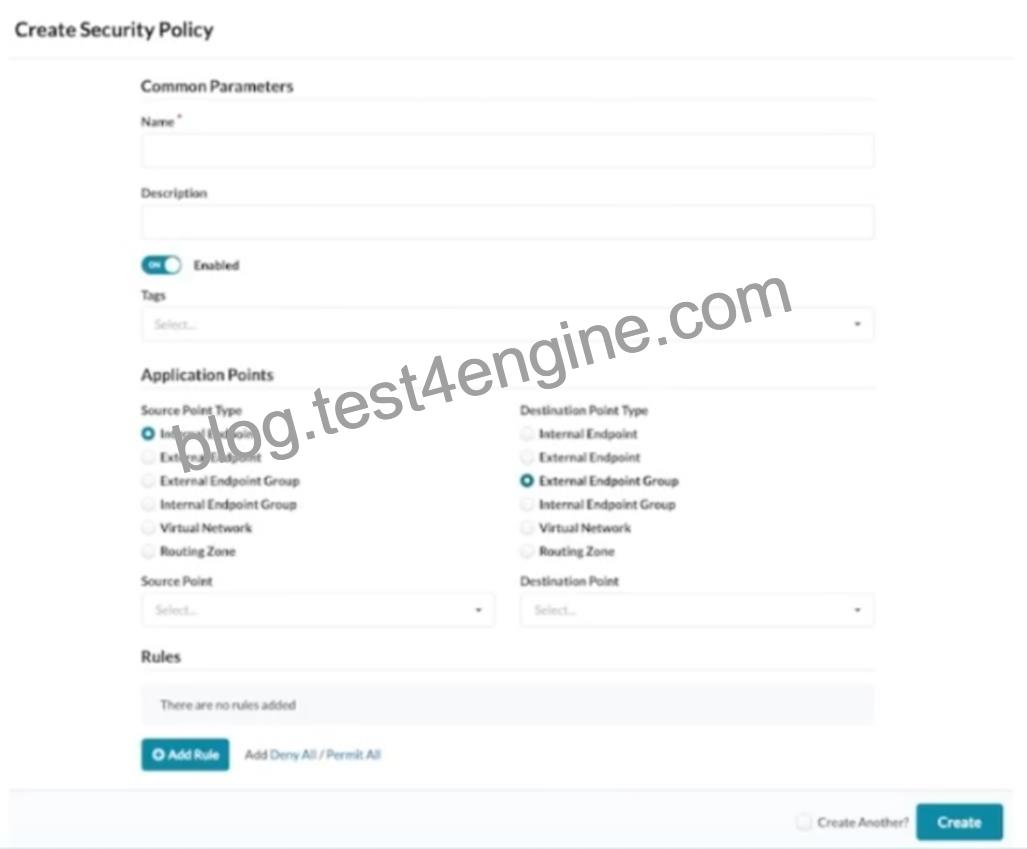

In Juniper Apstra, a Routing Zone corresponds to a VRF. If you want to create a security policy that controls traffic to or from a particular VRF, you must select Routing Zone as the application point. This ensures the policy is applied at the VRF level rather than to specific endpoints or virtual networks.

In a Juniper Apstra-managed data center fabric, IP addresses are automatically allocated from IP resource pools defined within Apstra. These pools are used to assign addresses to loopbacks, inter-switch links, and other infrastructure elements, ensuring consistency and automation across the fabric.

The Superuser role in Juniper Apstra has full administrative privileges across the entire system, including the ability to create and manage users, roles, blueprints, and all other system-wide settings. This is distinct from more limited roles like Blueprint Admin, which restricts administrative control to specific blueprints only.

The Revert button is located on the Uncommitted tab of the blueprint page. The Uncommitted tab shows the changes that have been staged but not yet committed to the network. The Revert button allows you to discard any uncommitted changes and revert to the last committed state of the blueprint. This is useful if you want to cancel the changes that you have made or if you want to start over with a fresh slate.

Juniper Apstra supports three deploy modes for devices: Deploy, Drain, and Ready. These modes determine the configuration and state of the devices in the data center fabric.
Deploy: This mode applies the full Apstra-rendered configuration to the device, according to the Apstra Reference Design. The device state becomes IS-ACTIVE and the device is ready to carry traffic in the fabric.
Drain: This mode adds a “drain” configuration to the device, which prevents any new traffic from entering the device. The device state becomes IS-READY and the device is prepared for maintenance or decommissioning.
Ready: This mode removes the Apstra-rendered configuration from the device, leaving only the basic configuration such as device hostname, interface descriptions, and port speed/breakout.
The device state becomes IS-READY and the device is not part of the fabric.

The Build tab within a Juniper Apstra blueprint provides administrators with a view of staged configuration changes compared to the currently active state. From this tab, administrators can review the differences, validate the design, and commit the staged changes to make them active on the managed devices.
